★ Applications ★
▶ Food Processing Equipment
▶ Pharmaceutical Reactor
▶ Viscous Fluid Tank
▶ Sanitary Pipeline
▶ Chemical Mixer
★ Specifications ★
| Pressure Range | 0….1bar 10bar 100bar….600bar |
| Output | 0.4-2.4V, 0-5V, 0.5-4.5V, 0-10V, 4-20mA, RS485, I2C, SPI |
| Accuracy | 0.5%FS, 1%F.S |
| Power Supply | 3.3V, 5V, 12V, 24V |
| Housing Material | Stainless steel 304 , 316 |
| Thread | G1/8, G1/4, G1/2, NPT1/8, NPT1/4 , M10 and etc. |
| Waterproof Level | IP65 |
| Wire length | 0.3M, 0.5M, 1M, 2M CUSTOMIZED |
| Measuring Media | Water, air, oil, fuel and etc. |
| Other Applications | Biological Fermenter, Dairy Processing Tank, Cosmetic Mixing Kettle, Sanitary Storage Tank, Wastewater Treatment Tank |
★ ODM & OEM Service ★
We provide full ODM/OEM support from design and customization to mass production, helping you bring sensor solutions to market faster.
Keywords:Flat Diaphragm sensor Diaphragm Pressure Sensor

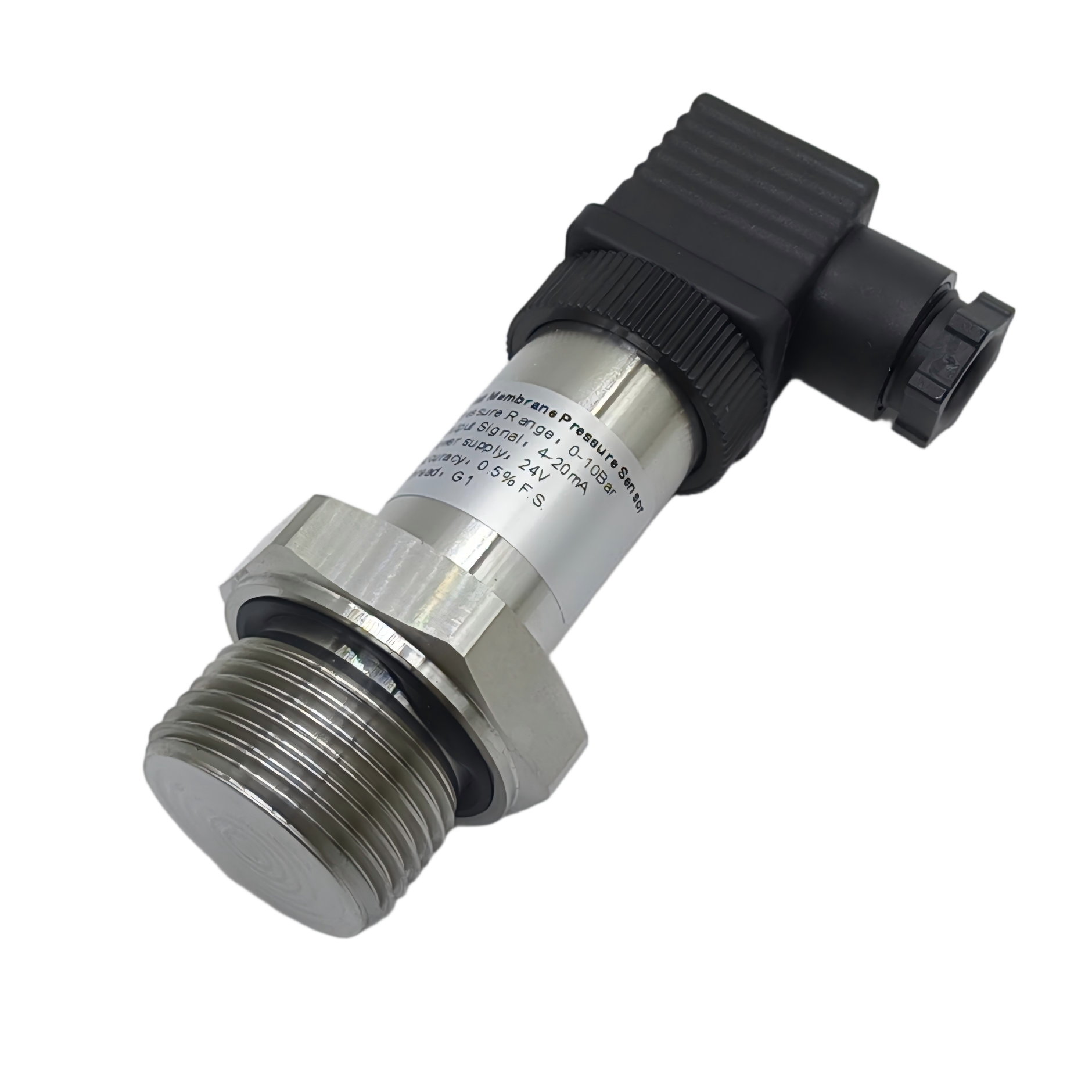

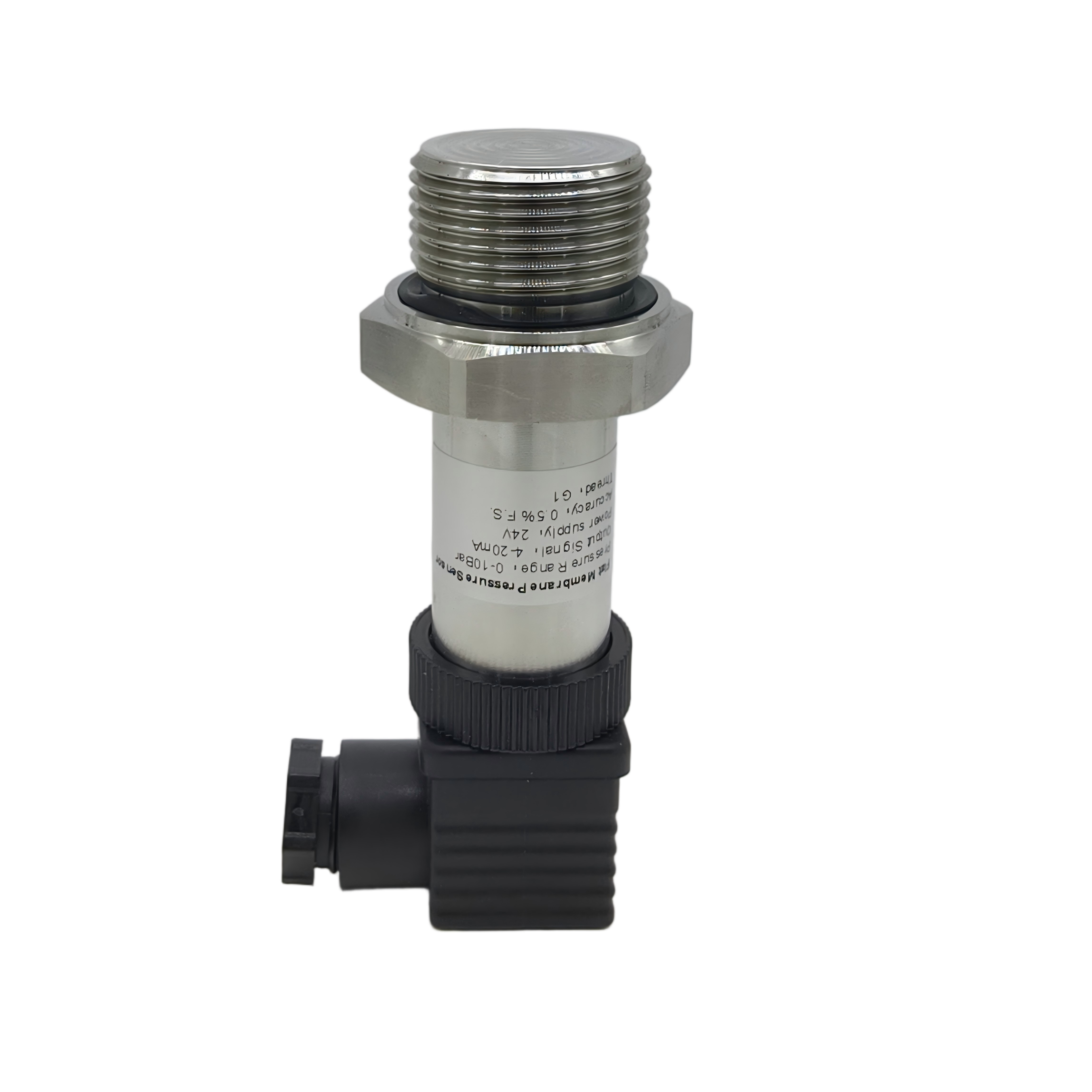

Food Grade Diaphragm Pressure Sensor
This 2 in1 Temperature and Pressure Sensor is easy to install and operate, with wide applicability, suitable for various scenarios such as industrial equipment, consumer electronics and environmental detection.
