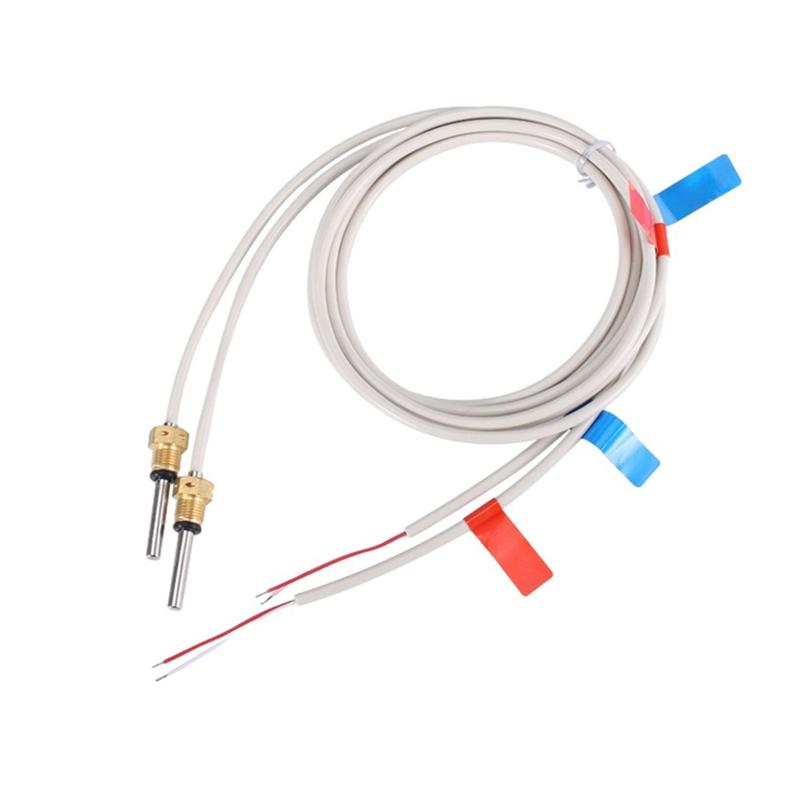

Feature

  • Type of probe: Pt100 or Pt1000

  • Number of conductors: 2, 3 or 4

  • Precision: Class A / Class B

  • Housing material: stainless steel 316

  • Probe: φ5*50mm

  • Wire length 2M

  • With heat shrink tube

Specifications

TypeMeasuring Range°CAccuracyToleranceTemperature Coefficient
Pt100-50~+500Class A±(0.15+0.002) |t|3.85·10-3K-1
Class B±(0.30+0.005) |t|3.85·10-3K-1
Pt1000-50~+500Class A±(0.15+0.002) |t|3.85·10-3K-1
Class B±(0.30+0.005) |t|3.85·10-3K-1
ITEMMORE OPTIONS
Housing materialStainless Steel Casing  /Copper Nickel/Plastic/Epoxy Resin /ABS Plastic /Brass ,etc~
Probecopper probe, screw probe, U type probe, thread probe, stainless steel, ABS probe, ring lug probe, flange type, or customized.
Diameter of thermowellØ16mm, Ø12mm, Ø8mm, Ø6mm, Ø5mm, Ø4mm, Ø3mm and etc.
Cable2-core cable / 3-core cable / 4 core cable
Cable typePVC cable, Silicone cable, TPE cable, PTFE cable, Teflon cable, Fiberglass cable and etc
ConnectorJST,Molex,RJ11, RJ12, RJ45, RJ50, XH, SM, PH, Aviation plug, terminal blocks, EL,TYCO, AMP,TJC32 ,54,SMR SMP,XH-2Y,XH-4Y,CWB,Dupont and etc
